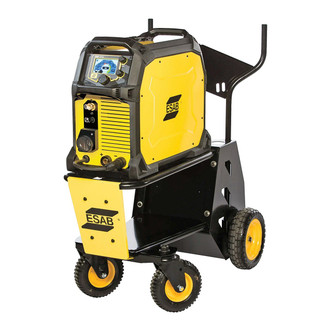

ESAB
Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.
Designed for excellent performance on MIG, Flux-Cored, TIG, and Stick applications. Capable of welding up to 300A, this multi-process, multi-voltage industrial welding machine runs the full range of 0.035" (0.9 mm) and 0.045" (1.2 mm) wires. With 285A at 40% you’ll have the confidence to run the full range of wire, short arc and spray transfer, with increased deposition rates and higher productivity on smaller diameter wires. The innovative “smart-MIG” feature dynamically monitors the arc characteristics, ultimately adapting to your technique, resulting in a smooth, stable arc. Set wire diameter and plate thickness and you are ready to weld. With the 4 Roll Drive System, weld up to .052" (1.4 mm) solid wire and up to 1/16" (1.6 mm) cored wire. Plus, electrodes up to 5/32" (4.0 mm) and TIG rods up to 3/16" (5.0 mm).
Manufacturer's 3-year warranty.
Primary Voltage: 120-240 VAC, 50/60 Hz
Supply Voltage Range: 90 –270 VAC
Maximum Output: 300 A / 34 V
MIG (GMAW/FCAW) Welding Output @ 104°F:
285 A / 28 V @ 40% Duty Cycle
220 A / 25 V @ 60% Duty Cycle
160 A / 22 V @ 100% Duty Cycle
STICK (SMAW) Welding Output @ 104°F:
260 A / 30 V @ 40% Duty Cycle
210 A / 28 V @ 60% Duty Cycle
135 A / 25 V @ 100% Duty Cycle
TIG (GTAW) Welding Output @ 104°F:
285 A / 21 V @ 40% Duty Cycle
240 A / 19 V @ 60% Duty Cycle
185 A / 17 V @ 100% Duty Cycle
MIG Welding Voltage Range: 12 – 34 V
Wire Feed Speed Range: 60 – 800 ipm (1.5 – 20.3 m/min)
Nominal OCV Volt/DC: 68 VDC
Maximum Plate Thickness: 1/2"
Wire Diameter Range: Mild Steel .023 – .052", Stainless Steel .030 – .052", Aluminum .030 – 1/16", Flux-Cored .030 – 1/16".
Wire Spool Size: 4", 8", 12"
Supply Plug NEMA: 6-50P (230 V)
Lead Cord Length: 10'
Approvals: CSA E60974-1-00 / UL60974-1 / IEC60974-1
Protection Class: IP23S
Overall Size: 26.5"L x 11.5"W x 19.5"H
Weight: 70 lbs.
Includes
Tweco® Spray Master® Velocity™ MIG gun
electrode holder, Atom Arc® 7018 electrodes
Victor® argon flowmeter regulator
12.5' hose
return clamp with leads
drive rolls and contact tips
.035" wire
manual
