ESAB
Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

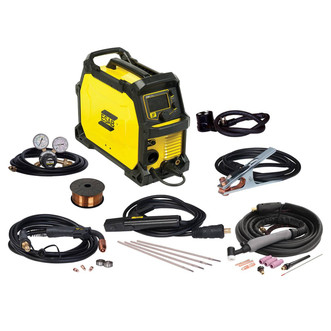

A complete MIG/MAG/DC TIG/Stick package ready to weld mild steel, aluminum, and stainless steel. Featuring DC Pulse TIG functionality for reduced heat input and refined weld profile. Perfect for welding on thin metals and heat sensitive applications. SmartMIG (sMIG) technology features basic mode for beginners, all the way up to dynamic arc control for more experienced students. This mode constantly monitors welds and adapts, delivering the smooth, stable arc you need and the superior, repeatable welds you want.
Input Voltage: 120 VAC ±10% %, 1, 50/60 Hz 230 V ±10 %, 1, 50/60 Hz
MIG (GMAW) Welding Output: 235 A26.0 V (230 V) @ 15 % Duty Cycle, 130 A20.5 V (120 V) @ 20 % Duty Cycle
Stick (SMAW) Welding Output: 180 A27.2 V (230 V) @ 25 % Duty Cycle, 130 A25.2 V (120 V) @ 20 % Duty Cycle
TIG (GTAW) Welding Output: 200 A18.0 V (230 V) @ 20 % Duty Cycle, 130 A15.2 V (120 V) @ 40 % Duty Cycle
Wire Feeder Specifications: 2.0-12.1 m/min ( 80-475 in./min )
Open Circuit Voltage: 52 (VRD <35) V
Use With Welding Material: 3/8"
Wire Diameter: Stainless Steel .030-.035", Aluminum .030-.045", Flux Cored .030-.045", Mild Steel .023-.035"
Max Spool Diameter: 4" and 8"
Power Factor at Maximum Current: 0.99, 0.98
Efficiency at Maximum Current 83.6 %
Energy Save Mode: 21 W
Voltage Steps: 10
Supply Plug: 230 V, NEMA 6-50P
MCableX: 6.5'
Rated kVA: 7 kVA (230 V), 4.4 kW (120 V), 6.8 kW (230V), 4.5 kVA (120 V)
Recommended Generator: 8.2 kVA (230V), 8.0 kW (230 V), 8.0 kW (120 V), 8.2 kVA (120 V)
Enclosure Class: IP23S
Certification Mark and Standards: CSA: E60974-1-00
Overall size: 23"L x 9"W x 16"H
Weight: 45.3 lbs.
Includes
Tweco Fusion™ 180 GMAW gun with 10'cable
tips
allen Key
torch with accessories
Victor® Flow Meter with 10' gas hose
electrode holder and lead assembly
work clamp and lead assembly
OK AristoRod 12.50 0.030"
2 feed rolls
thickness gauge
power adapter
safety manual
USB stick including manuals
weld parameter chart
quick start guide
