Elenco Power Supply, Quad 0-20V at 2.5A 3 Fixed

Description

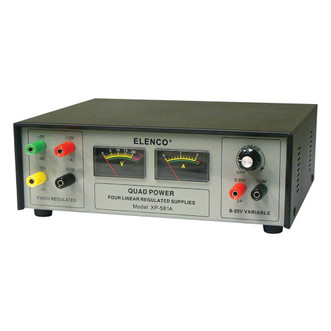

The Model XP-581A is a solid-state DC power supply. It contains four fully regulated power supplies. Three fixed voltage supplies are +5VDC @ 3A, +12VDC @ 1A, –12VDC @ 1A. A variable voltage power supply is capable of delivering 0-20VDC at up to 2A.

All four supplies are precisely held to the desired output voltage by special regulating circuits with thermal shutdown, current limiting and short circuit protected.

The XP-581A is ideal for use in school, laboratories, service shops or anywhere a precise DC voltage is required.

• Unit will work with an input of 110 OR 220 VAC (plug adapter may be required)
• Fully regulated and short protected
• Voltage and current meters
• Low cost and high value

Ages: 13+

Number of Outputs: Four (one variable and three fixed)
Range: 0-20VDC 2A, 5V +0.25V @ 3A, 12V +0.6V @ 1A, –12V +0.6V @ 1A
Load Regulation: Less than 100mV for each output
Line Regulation: Less than 100mV for each output
Ripple: Less than 10mV rms for each output
Input Voltage: 115/230VAC +10% 50/60Hz
Protection: Thermal, current limit, short circuit for each output; fuse for primary AC voltage
Operating Environment: 32°F to 104°F (0°C to 40°C) 90% R.H.
Size: 10.2"W x 3.7"H x 10"D
Weight: 8.11 lbs.
