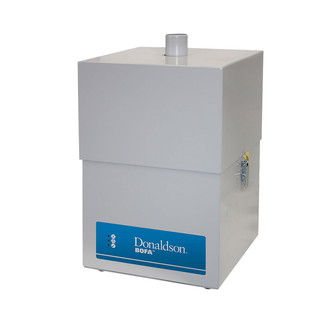

Donaldson BOFA AD Access Fume Extractor, 115V

Description

A compact, entry-level fume extraction system to maintain a clean, healthy working environment for light duty laser marking, coding and engraving applications. Includes a 3-stage filter (DeepPleat pre-filter, HEPA, and chemical section) with a condition indicator.

• Advanced carbon filter technology (ACF)
• Low noise levels
• Long life, low cost replacement filters
• Small footprint

DeepPleat pre-filter specifications
Surface media area: 1.74m² approx (18.7 ft²)
Filter media: Borosilicate
Filter media construction: 50mm maxi fold construction with glue bead spacers (0.16')
Filter efficiency: 95% @ 0.9 microns

Combined filter specifications
HEPA filter media: Borosilicate
HEPA media construction: Pleated with glue bead spacers
Filter housing: Zintec mild steel
Treated activated carbon: 7kgs approx (15.4 lbs)
Filter efficiency: 99.997% @ 0.3 microns

115V, 1PH, 50/60Hz
Full load current: 1.2 Amps / 135W
Airflow/presure: 106 cfm / 30 mbar
Noise level: < 56 dBA
Size: 20.08"W x 12.79"D x 12.20"H
Weight: 52.8 lbs.

Includes
pre-filter
combined filter
