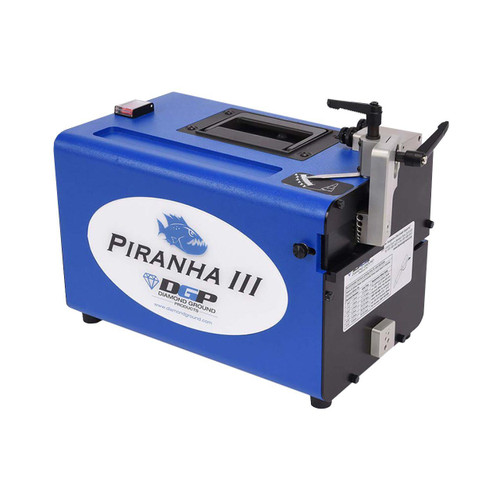

DGP Piranha III Tungsten Grinder

Description

Compact and durable, this grinder was designed for maximum commercial use. Aluminum construction with a lightened chassis, this durable and solid design features a recessed handle, integrated receptacle area, no vibration, and DGP's signature blue powdercoat. Universal collet arm grinds for 6 electrode sizes from .040" - 3/16" with no equipment changes. Precision tip flat gauge and depth adjustment stop ensure optimal consistency and near-perfect repeatability. Longitudinal 20 RA grinding for maximum arc starting, arc stability, electrode life, and weld penetration. Sliding dust shield and containment baffle keep 100% of excess tungsten electrode dust inside grinder housing.

• On/off switch with LED light for improved display of unit operation
• Included angle scale for angles from 10° – 60°
• Tip flat block for square end grinding and removing bad tips
• Electrode notching station for simple cut-off
• Port ready for vacuum upgrade

Range of Included Angle: 10° – 60°
Electrode Diameters: .040", 1/16", 3/32"
Minimum Electrode Length: 1.75"
Voltage: 110/230 VAC, 50/60Hz
Power Consumption: 500 Watts
Motor: 1/3 HP, 1,700 rpm, 6 amps
Size: 12"L x 7.5"W x 7.5"H
Weight: 32 lbs.

Includes
3 Allen wrenches
pin vise
manual
