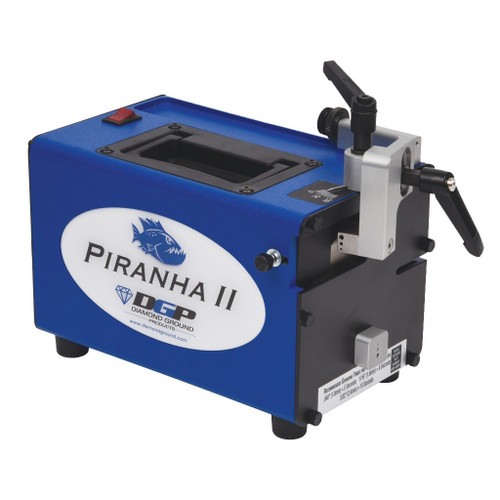

DGP Piranha II Tungsten Grinder 300G

Description

This grinder is easy to set up and operate, and is a safer alternative to a standard bench grinder. The universal collet will properly sharpen tungsten welding electrode diameters from .040" (1.0mm) to 3/32" (2.4mm) and as short as 3/4” (19.5mm) and taper angles from 10˚ - 60˚. It's fully enclosed and will contain excess tungsten dust. Ideal for general welding usage and will support a handful of welders using it on a daily basis.

• 20 RA grinding for maximum arc starting, arc stability, electrode life, and weld penetration
• Correctly and consistently diamond grind longitudinally in less than 30 seconds
• Diamond grinds, flats, and notches Tungsten economically
• Electrode notching station for simple cut-off
• Double-sided grinding wheel for maximum wheel life and value
• Compact, durable, and solid design with no vibration features recessed carry handle

Range of Included Angle: 10° – 60°
Electrode Diameters: .040", 1/16", 3/32"
Minimum Electrode Length: 1.75"
Voltage: 110/220 VAC, 50/60Hz
Power Consumption: 60 Watts
Motor: 6,000 rpm, .5 amps
Size: 7.75"L x 4.75"W x: 6.0"H
Weight: 10 lbs.

Includes
3 Allen wrenches
pin vise
manual
