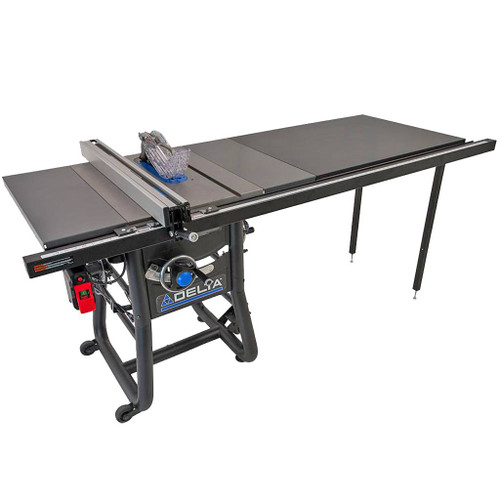

Delta 10" Contractor Table Saw, 52" Fence

Description

Powered by a 15 amp induction motor; this saw is designed for precision, durability, stability, and mobility. This is a BELT DRIVEN machine that offers low vibration and easy tensioning. Cut after cut, this saw is designed for the demands of the professional user and serious craftsman.

• Powerful Contractor Grade motor easily handles hardwoods
• 52" Rip Capacity handles large stock
• Smooth and dependable adjustable belt drive table saw
• Cast iron table top with 2 stamped steel extension wings
• Legendary Biesemeyer style fence system allows for precision cuts every time and has a special design allowing you to cut small pieces of stock
• Stacked dado capacity
• Unique tubular stand with two fixed wheels and one swivel wheel makes the saw very stable and easy to move

Depth of Cut at 90°: 3-1/8" (79.36 mm)
Depth of Cut at 45°: 2-1/4" (57.2 mm)
Rip Right of Blade: 52" (1320.8 mm)
Rip Left of Blade: 15" (381 mm)
Motor: 15 Amp Induction Motor, 1 PH, 60 Hz
RPM: 3,450 RPM
Arbor: 5/8" (15.88 mm)
Blade Tilt: 45° Left
Dado Capacity: 13-16" (20.64 mm) x 8 in. (203 mm) stacked dado
Dust Port Size: Fit 2.5" (63.5 mm) Hose (With 4" (102 mm) Adapter)
Table Size: 77" x 27" (40" x 27" with WINGS and 76.5" wide with extension board)
Length: 84.75" (2,152.65 mm)
Depth: 40.16" (1,020 mm)
Height: 42.91" (1,089.91 mm)
Weight: 269 lbs. Net (122 kg)

Includes T-square fence system, miter gauge, blade, extension wings and stand.
