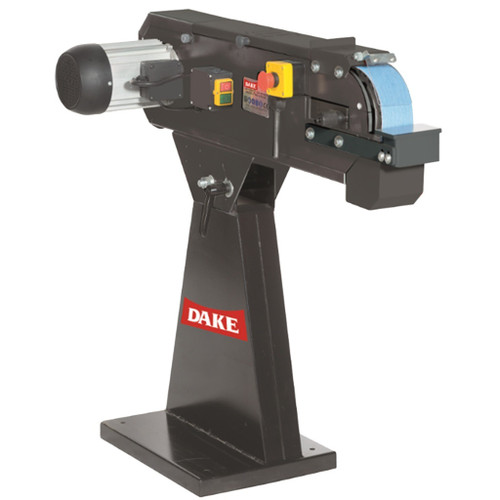

Dake FG-75 Belt Grinder, 220V

Description

Keeping a busy classroom moving is hard to do with without high-efficiency tools. This Dake Belt Grinder was designed to help students work quickly and safely so projects don't fall behind. The 4 HP motor helps produce 6,000 fpm grinding speed. The head pivots up and down on the base for easy and ergonomic work height adjustments for any project. A hinged top cover opens to provide access to the grinder for large pieces of metal using the entire length of the belt. Advanced belt tracking capabilities with a vented front wheel that's fixed in place provides rigidity when grinding on the wheel radius. The parts rest is adjustable and the backing plate has a Plexiglass shield to ensure the part being ground remains steady and in place.

Belt size: 3" x 79"
Horsepower: 4
Electrics: 220 volts, 3 phase
Contact wheel size: 3" x 8"
Belt speed: 6,000 fpm
Grinding plane (full): 3" x 21"
Work Height: 22" – 48"
Base Dimensions: 17" x 21"
Machine Width: 22"
Machine Length: 39"
Overall Height: 43"
Weight: 139 lbs.

Includes
Base
Hinged Cover
Grinding Belt
Plexiglas Guarding
60-Grit Belt
