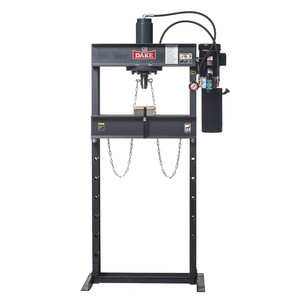

Dake 50-Ton Force Hydraulic Press

Description

This electric hydraulic press from Dake is powered by a single phase, 110 volt motor which makes it great at pressing and forming applications while still being portable. These hydraulic components are quiet, low-pressure, and efficient. The welded channel iron H-frame is sturdy and durable for accepting large and bulky items. The table height is also adjustable for proper positioning.

A double-acting cylinder allows you to precisely position the ram, and moves it during the downstroke and return. A 3-point lever and 4-way valve hydraulic control provide single-handed control over the ram movement for smooth, easy operation.

Capacity: 50 tons
Operation: Electric
Horsepower: 2
Voltage: 110V/220V, Single Phase
Width between uprights: 44"
Width between table channels: 8-1/4"
Minimum ram to table: 10"
Maximum ram to table: 41-3/4"
Ram travel: 16"
Horizontal head travel: Fixed
Pressing speed: 11 ipm
RPM: 3,450
Footprint: 55" x 36"
Base: 55" x 36"
Height: 94"
Weight: 1,330 lbs.

Includes
Frame
Safety Relief Valve
2 Combination Table Plate/V-Blocks
Pressure Gauge
Lifting Chain
