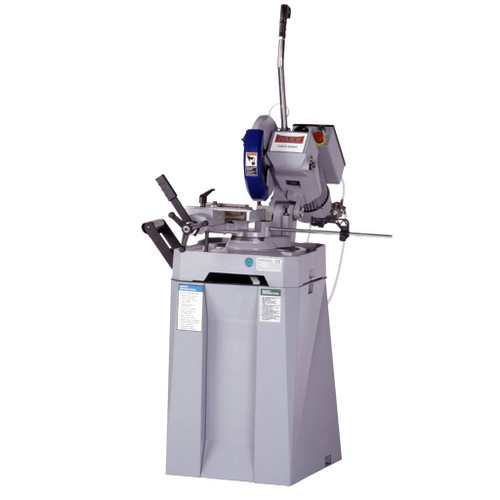

Dake 315 Manual Cold Saw, 1PH 120V

Description

This heavy-duty, low-production manual cold saw has a head that rotates 45° left and right for mitering and comes with a standard HSS blade. The dependable oversized hardened and ground steel spindle shaft has an additional ball bearing support to prevent failure. Bronze gear assembly has a tapered roller bearing support. The mechanical coolant pump is reliable and has flow control adjustment. The vise is is adjusted by the handwheel and activated by a cam lever, which is ideal for repeat clamping in a classroom. Unit also has 24V at controls, eStop, low voltage protection and thermal overload protection.

Voltage: 120V
Horsepower: 1.6
Cutting Ability: Ferrous/non-ferrous/plastics
Maximum blade diameter 12-1/2"
Maximum vise opening: 4-5/8"
Maximum Angle: 45° right/left
Slotting: No
Phase: 1
Speed: 44 rpm
Solid round 90° capacity: 2-5/8"
Solid round 45° capacity: 2-1/2"
Tube 90° capacity: 3-5/8"
Tube 45° capacity: 3-1/2"
Square 90° capacity: 3-1/4"
Square 45° capacity: 3-1/8"
Rectangle 90° capacity 4-1/4" x 2-3/4"
Rectangle 45° capacity 3-1/4" x 2-3/4"
Work height: 38-1/2"
Height: 59"
Width: 26"
Depth: 36"
Weight: 450 lbs.

Includes
Blade
Pedestal Base
Tool Kit
Gallon of Coolant
Adjustable Positive Stop
