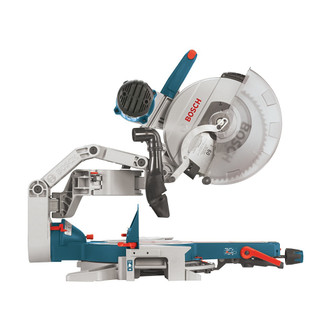

Bosch 12" Dual-Bevel Glide Miter Saw

Description

The Bosch-exclusive Axial-Glide™ offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. 15 Amp motor delivers no-load speeds of 3,800 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12" blades and it has a clear lower guard to provide unobstructed cut-line visibility. Provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw's all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy.

Features

• 12" Dual-Bevel Glide™ miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the Bosch-exclusive Axial-Glide™ system
• Pre-aligned Squarelock™ fences help the saw maintain precision throughout its life
• A soft-grip ambidextrous handle along with a combination dust chute and vacuum adaptor add to user comfort
• The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
• Integrated expanding base extensions: 60% more left-to-right material support than leading competitor - 40" left to right
• Large easy-to-read uniform bevel & stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
• Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate and durable design
• Push-button miter Detent override - easy-to-access thumb actuated control right up front for fine miter angle adjustment
• Bevel detents: 0, 33.9°, 45° left/right for accurate cuts
• Category best 90% dust collection - optimized for cutting 2x material with a vacuum
• Ergonomic ambidextrous trigger handle with soft grip - large form fitting ergonomic handle provides comfort for all-day use

Specifications

Voltage: 120V
Amperage: 15.0
No Load RPM: 3,800
Bevel Angle Range: 47° left and 47° right
Bevel Stops: 0°, 33.9°, 45° and 47° (L/R)
Blade Diameter: 12.0
Blade Size: 12"
Dust Collection: Yes
Electric Motor Brake: Yes
Max. Base Molding Against Fence: 3-7/8” (6-3/4” from 0° to 47 L)
Max. Crown Molding (38° Spring) Angled Against Fence: 5-1/4” (5-1/2” from 0° to 47° L)
Max. Crown Molding (45° Spring) Angled Against Fence: 6”
Max. Cut Capacity - 0° Miter 0° Bevel: 3-1/2” x 13-1/2” (4x14 Dimensional Lumber)
Max. Cut Capacity - 0° Miter 45° Left Bevel: 2” x 13-1/2” (2x14 Dimensional Lumber)
Max. Cut Capacity - 0° Miter 45° Right Bevel: 1-1/2” x 13-1/2” (2x14 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 0° Bevel: 3-1/2” x 9-1/2” (4x10 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 45° Left Bevel: 2” x 9-1/2” (2x10 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 45° Right Bevel: 1-1/2” x 9-1/2” (2x10 Dimensional Lumber)
Miter Angle Range: 52° Left, 60° Right
Miter Detents: 0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right)
Miter Positive Stops: 0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right)
Overall size: 26.5"W x 32.375"L x 27"H
Weight: 65.0 lbs.

What's in the box

Includes

Premium 12" 60-tooth carbide-tipped blade
Wrench
Toolless vertical work clamp
Dust bag/assembly
Vacuum adapter elbow
