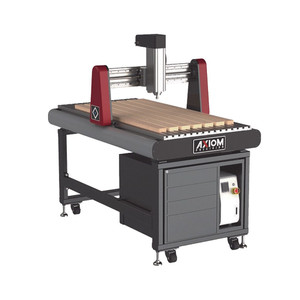

Axiom Iconic4 CNC Education Package

Description

Rarely does the least expensive solution possess best-in-class features…That changes with the launch of Axiom’s new Iconic CNC machining center. The best technology and components have been selected to build what will surely be the new king of the entry-level CNC market.

The new Iconic CNC series includes prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which is utilized on Axiom's larger machines. A full complement of accessories are included ensuring that you’ll receive a package that’s tailored to your CNC needs.

Targeted specifically at the first-time CNC user, the ICONIC4 will be supported with a comprehensive manual and video library which are intended to dramatically shorten a new user's learning curve.

Features

• High Rigidity Extruded Aluminum Frame
• Interlocking Aluminum Table
• Integrated MDF Spoil Board
• Auto Tool Touch-off Plate
• Prismatic Guides In All Axes
• Precision Ball Screws
• 1HP (800W) Electro Spindle
• RichAuto B11 Industrial 3-Axis CNC Controller

Specifications

X axis travel: 23.81" (605mm)
Y axis travel: 24.01" (610mm)
Z axis travel: 3.937" (100mm)
Table work area: 28.4" x 37"
Electro Spindle: 800W (1HP)
Spindle speed: 0-24,000 RPM
Rapid feed rate: 150 IPM (3.81 MPM)
Precision Linear Guideway: X/Y/Z
Precision Ball Screw: X/Y/Z
Ball Screw Diameter: 16mm
Positional Accuracy: +/- .00589" (0.15mm)
Power requirements: 115V, 50~60Hz, 13A, 1-Phase
Working Table: High rigidity Aluminum Extrusion
Gantry bridge: High rigidity Aluminum Extrusion
Gantry Supports: Aluminum billet machined
Max Gantry Clearance: 5-1/2" (139.0mm)
Gantry Clearance above Spoil Brds: 4 -1/2" (114.3mm)
Machine Base: All Welded Steel Frame
Machine Dimensions: 38"L x 35"W x 28"H
Machine Weight: 176 lbs.
Tool Touch Off: Included
Controller: Richauto B11 DSP, CNC motion control system, USB port for easy file transfer. (NO PC REQUIRED)

What's in the box

Includes
ICONIC4 Axiom CNC Machine
ICONIC4 Stand, Toolbox & Dust Shoe
LED Kit
Linear Clamp Kit
2 Sets of Hold Down Clamp Kits
3-Piece Starter Bit Set
2-Piece Sign Making Bit Set
VCarve Desktop Software v10 (40-Seat Education Site License}
32 Module Educational Curriculum (PDF, PPTX & Printed Formats}
2 Seats at Axiom Training Workshop
Mfr.'s 3-Year "Education Exclusive" Warranty
Assembled, Tested, Delivered to School*, & Ready To Run (stand requires assembly)

*Contiguous United States only. Includes lift gate service direct to the school. Note that additional changes may apply to remote areas in some States.
